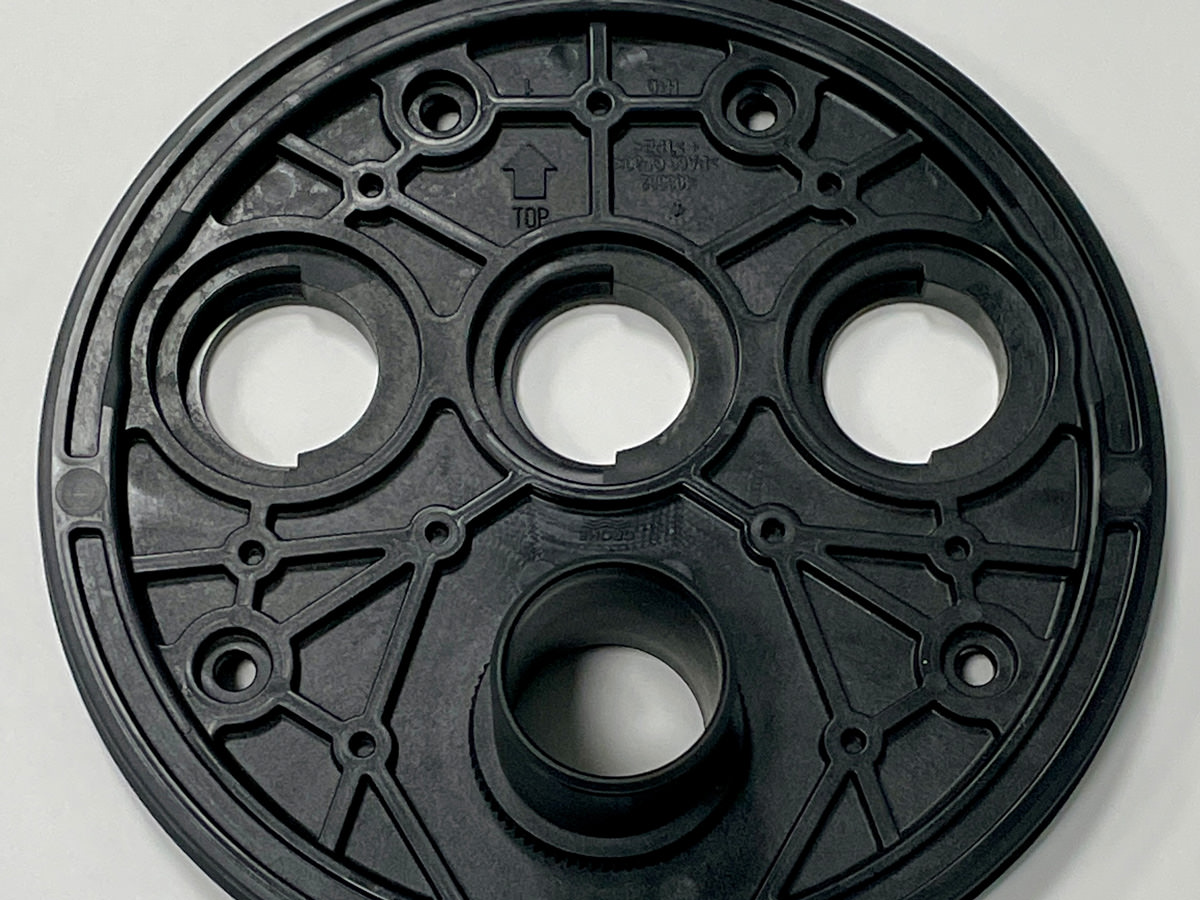

Product example: Housing flush-mounted body for thermostatic valve
Tool technology: 2-fold injection molding tool, slide in four directions, pre-demolding of the inner core and two underfloor slide on the nozzle side, hot runner injection on sub-manifold
Requirements: large differences in wall thickness with large flow path lengths, removal using a handling system and subsequent automated application of a circumferential sticker
Material: easy flowing ABS
